Render report output while auto submit and search and select prompt

Cognos report output, avoid reload on prompt selection

Requirement:
1. When click on auto submit prompt entire report should not loaded again.

2. When click on search button in search and select prompt entire report should not loaded again.

3. Display report only on initial load and when click on finish button.

Solution:

Overview,

We will create a parameter with a default value and change its value on finish button click and report output will display only on the value changed by finish button.

Step1. Create a hidden prompt with default value '1' and assign a parameter.

               Prameter name =p_sns_click

Step2: create Boolean variable.

ParamValue('p_sns_click')='1'

Step 3: Assign this variable in render variable property of report output(List, cross tab, chart, table etc.) .

Step 4: create a finish button and put a HTML item in left to start div, put two html item at right to end div and write Java script.

In first html item

<div id='finishButton'>

In second html item

</div>

In third html item

<script type="text/javascript" language="javascript">

var fW = (typeof getFormWarpRequest == "function" ? getFormWarpRequest() : document.forms["formWarpRequest"]);

var oCR = cognos.Report.getReport("_THIS_");

var click_holder_prompt= oCR.prompt.getControlByName("click_holder_prompt");

document.getElementById('finishButton').getElementsByTagName('button')[0].onclick=function(){

//alert('test');

var Value = [{'use': '1'}]

click_holder_prompt.setValues(Value);

promptAction('finish');

};

      fW._textEditBoxclick_holder_prompt.value='000';

</Script>

Complete report xml on 10.2.1

<report xmlns="http://developer.cognos.com/schemas/report/11.0/" useStyleVersion="10" expressionLocale="en-us">
<modelPath>/content/folder[@name='Samples']/folder[@name='Models']/package[@name='GO Sales (analysis)']/model[@name='model']</modelPath>
<layouts>
<layout>
<reportPages>
<page name="Page1"><style><defaultStyles><defaultStyle refStyle="pg"/></defaultStyles></style>
<pageBody><style><defaultStyles><defaultStyle refStyle="pb"/></defaultStyles></style>
<contents>
<selectValue parameter="Parameter1" refQuery="Query1" multiSelect="false" selectValueUI="radioGroup" autoSubmit="true" required="false"><useItem refDataItem="Retailer type code"><displayItem refDataItem="Retailer type code"/></useItem><defaultSelections><defaultSimpleSelection>1</defaultSimpleSelection></defaultSelections><style><CSS value="height:200px"/></style></selectValue><selectValue parameter="Parameter2" refQuery="Query3" multiSelect="true" selectValueUI="checkboxGroup" required="false" cascadeOn="Parameter1"><useItem refDataItem="Retailer code"><displayItem refDataItem="Retailer code"/></useItem><style><CSS value="height:200px"/></style></selectValue><selectWithSearch parameter="Parameter3" refQuery="Query4" multiSelect="true" required="true"><useItem refDataItem="Product number"><displayItem refDataItem="Product details"/></useItem></selectWithSearch><table><style><defaultStyles><defaultStyle refStyle="tb"/></defaultStyles><CSS value="border-collapse:collapse"/></style><tableRows><tableRow><tableCells><tableCell><contents/></tableCell><tableCell><contents><HTMLItem description="Finish div">
<dataSource>
<staticValue>&lt;div id='finishButton'&gt;</staticValue>
</dataSource>
</HTMLItem><promptButton type="finish" name="Finish Button1">
<contents/>
<style>
<defaultStyles>
<defaultStyle refStyle="bp"/>
</defaultStyles>
<CSS value="margin:5px 5px 5px 10px;background-color:#60B815;font-weight:bold;color:white"/></style>
</promptButton><HTMLItem description="finish div end">
<dataSource>
<staticValue>&lt;/div&gt;</staticValue>
</dataSource>
</HTMLItem><textBox name="click_holder_prompt" required="false" parameter="p_sns_click"><defaultSelections><defaultSimpleSelection>1</defaultSimpleSelection></defaultSelections><style><CSS value="visibility:hidden"/></style></textBox><HTMLItem name="Show_Hide Default Hide" description="Show/Hide(Default Hide) and stop refresh">
<dataSource>
<staticValue>&lt;script type="text/javascript" language="javascript"&gt;
var fW = (typeof getFormWarpRequest == "function" ? getFormWarpRequest() : document.forms["formWarpRequest"]);
var oCR = cognos.Report.getReport("_THIS_");
var click_holder_prompt= oCR.prompt.getControlByName("click_holder_prompt");
document.getElementById('finishButton').getElementsByTagName('button')[0].onclick=function(){
//alert('test');
var Value = [{'use': '1'}]
click_holder_prompt.setValues(Value);
promptAction('finish');
};





      fW._textEditBoxclick_holder_prompt.value='000';

&lt;/Script&gt;
</staticValue>
</dataSource>
</HTMLItem></contents></tableCell></tableCells></tableRow></tableRows></table><v2_combinationChart maxHotspots="10000" name="Combination Chart1" refQuery="Query2">
<v2_combinationTypeTooltips/>
<v2_legend>
<v2_legendPosition>
<v2_legendPreset/>
</v2_legendPosition>
<v2_legendTitle refQuery="Query2">
<v2_chartTextContents>
<v2_automaticText/>
</v2_chartTextContents>
<style>
<defaultStyles>
<defaultStyle refStyle="lx"/>
</defaultStyles>
</style>
</v2_legendTitle>
<style>
<defaultStyles>
<defaultStyle refStyle="lg"/>
</defaultStyles>
</style>
</v2_legend>
<v2_commonAxis>
<v2_ordinalAxis>
<v2_axisTitle refQuery="Query2">
<v2_chartTextContents>
<v2_automaticText/>
</v2_chartTextContents>
<style>
<defaultStyles>
<defaultStyle refStyle="at"/>
</defaultStyles>
</style>
</v2_axisTitle>
<v2_axisLine lineWeight="0"/>
<v2_axisLabels>
<style>
<defaultStyles>
<defaultStyle refStyle="al"/>
</defaultStyles>
</style>
</v2_axisLabels>
</v2_ordinalAxis>
<chartNodes><chartNode><chartNodeMembers><chartNodeMember refDataItem="Products"><chartContents><chartTextItem><dataSource><memberCaption/></dataSource></chartTextItem></chartContents></chartNodeMember></chartNodeMembers></chartNode></chartNodes></v2_commonAxis>
<v2_topLeftAxis>
<v2_combinationChartTypes>
<v2_bar borders="show">
<v2_solidPalette>
<v2_solidPaletteEntries>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#8599D3">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#8599D3"/>
<v2_gradientColor colorPosition="100" gradientColor="#5876AE"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#E3AE6C">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#E3AE6C"/>
<v2_gradientColor colorPosition="100" gradientColor="#CD854E"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#839862">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#839862"/>
<v2_gradientColor colorPosition="100" gradientColor="#6C7F56"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#B7C873">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#B7C873"/>
<v2_gradientColor colorPosition="100" gradientColor="#AFB885"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#8484A8">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#8484A8"/>
<v2_gradientColor colorPosition="100" gradientColor="#525E7E"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#C0CCED">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#C0CCED"/>
<v2_gradientColor colorPosition="100" gradientColor="#B0C2E5"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#8C5580">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#8C5580"/>
<v2_gradientColor colorPosition="100" gradientColor="#794067"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#C789BC">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#C789BC"/>
<v2_gradientColor colorPosition="100" gradientColor="#BB72BC"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#D5BAEF">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#D5BAEF"/>
<v2_gradientColor colorPosition="100" gradientColor="#C29FD1"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#83683F">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#83683F"/>
<v2_gradientColor colorPosition="100" gradientColor="#604926"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#DCB05A">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#DCB05A"/>
<v2_gradientColor colorPosition="100" gradientColor="#C09C52"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#F4DF9E">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#F4DF9E"/>
<v2_gradientColor colorPosition="100" gradientColor="#E4CF87"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#5F8A8C">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#5F8A8C"/>
<v2_gradientColor colorPosition="100" gradientColor="#537579"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#96C4B2">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#96C4B2"/>
<v2_gradientColor colorPosition="100" gradientColor="#89B0A0"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#CBE8E7">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#CBE8E7"/>
<v2_gradientColor colorPosition="100" gradientColor="#BDD6D5"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#AE6564">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#AE6564"/>
<v2_gradientColor colorPosition="100" gradientColor="#875352"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#D88C6F">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#D88C6F"/>
<v2_gradientColor colorPosition="100" gradientColor="#C47D61"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#E3C9B0">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#E3C9B0"/>
<v2_gradientColor colorPosition="100" gradientColor="#D2B2A5"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#848484">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#848484"/>
<v2_gradientColor colorPosition="100" gradientColor="#555555"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#a4a4a4">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#a4a4a4"/>
<v2_gradientColor colorPosition="100" gradientColor="#909090"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
<v2_solidPaletteEntry>
<v2_fillEffect defaultColor="#C7C7C7">
<v2_linearGradient gradientAngle="0">
<v2_gradientColor colorPosition="0" gradientColor="#C7C7C7"/>
<v2_gradientColor colorPosition="100" gradientColor="#c1c1c1"/>
</v2_linearGradient>
</v2_fillEffect>
</v2_solidPaletteEntry>
</v2_solidPaletteEntries>
</v2_solidPalette>
<!-- v2_solidPaletteRef ref=&quot;gDefaultSolid&quot;/ -->
<chartNodes><chartNode><chartNodeMembers><chartNodeMember refDataItem="Retailer (by type)"><chartContents><chartTextItem><dataSource><memberCaption/></dataSource></chartTextItem></chartContents></chartNodeMember></chartNodeMembers></chartNode></chartNodes></v2_bar>
</v2_combinationChartTypes>
<v2_axis>
<v2_axisTitle refQuery="Query2">
<v2_chartTextContents>
<v2_automaticText/>
</v2_chartTextContents>
<style>
<defaultStyles>
<defaultStyle refStyle="at"/>
</defaultStyles>
</style>
</v2_axisTitle>
<v2_axisLine lineWeight="0"/>
<v2_axisRange>
<v2_automaticRange/>
</v2_axisRange>
<v2_axisLabels>
<style>
<defaultStyles>
<defaultStyle refStyle="al"/>
</defaultStyles>
</style>
</v2_axisLabels>
<v2_majorGridlines lineWeight="0" lineColor="#CCCCCC"/>
<v2_majorBackgroundColors>
<v2_firstBackgroundColor color="#D2D2D2" transparency="50"/>
<v2_secondBackgroundColor color="#E2E2E2" transparency="50"/>
</v2_majorBackgroundColors>
</v2_axis>
</v2_topLeftAxis>
<style>
<defaultStyles>
<defaultStyle refStyle="ch"/>
</defaultStyles>
</style>
<noDataHandler>
<contents>
<block>
<contents>
<textItem>
<dataSource>
<staticValue>No Data Available</staticValue>
</dataSource>
<style>
<CSS value="padding:10px 18px;"/>
</style>
</textItem>
</contents>
</block>
</contents>
</noDataHandler>
<v2_defaultChartMeasure refDataItem="Revenue"/><conditionalRender refVariable="finish_click"><renderFor refVariableValue="1"/></conditionalRender></v2_combinationChart>
<crosstab horizontalPagination="true" name="Crosstab1" refQuery="Query2">
<crosstabCorner>
<contents><textItem><dataSource><dataItemLabel refDataItem="Revenue"/></dataSource></textItem></contents>
<style>
<defaultStyles>
<defaultStyle refStyle="xm"/>
</defaultStyles>
</style>
</crosstabCorner>
<noDataHandler>
<contents>
<block>
<contents>
<textItem>
<dataSource>
<staticValue>No Data Available</staticValue>
</dataSource>
<style>
<CSS value="padding:10px 18px;"/>
</style>
</textItem>
</contents>
</block>
</contents>
</noDataHandler>
<style>
<CSS value="border-collapse:collapse"/>
<defaultStyles>
<defaultStyle refStyle="xt"/>
</defaultStyles>
</style>
<crosstabColumns><crosstabNode><crosstabNodeMembers><crosstabNodeMember refDataItem="Retailer (by type)" edgeLocation="e1"><style><defaultStyles><defaultStyle refStyle="ml"/></defaultStyles></style><contents><textItem><dataSource><memberCaption/></dataSource></textItem></contents></crosstabNodeMember></crosstabNodeMembers></crosstabNode></crosstabColumns><crosstabRows><crosstabNode><crosstabNodeMembers><crosstabNodeMember refDataItem="Products" edgeLocation="e2"><style><defaultStyles><defaultStyle refStyle="ml"/></defaultStyles></style><contents><textItem><dataSource><memberCaption/></dataSource></textItem></contents></crosstabNodeMember></crosstabNodeMembers></crosstabNode></crosstabRows><defaultMeasure refDataItem="Revenue"/><crosstabFactCell><contents><textItem><dataSource><cellValue/></dataSource></textItem></contents><style><defaultStyles><defaultStyle refStyle="mv"/></defaultStyles></style></crosstabFactCell><conditionalRender refVariable="finish_click"><renderFor refVariableValue="1"/></conditionalRender></crosstab></contents>
</pageBody>
<pageHeader>
<contents>
<block><style><defaultStyles><defaultStyle refStyle="ta"/></defaultStyles></style>
<contents>
<textItem><style><defaultStyles><defaultStyle refStyle="tt"/></defaultStyles></style>
<dataSource>
<staticValue/>
</dataSource>
</textItem>
</contents>
</block>
</contents>
<style>
<defaultStyles>
<defaultStyle refStyle="ph"/>
</defaultStyles>
<CSS value="padding-bottom:10px"/>
</style>
</pageHeader>
<pageFooter>
<contents>
<table>
<tableRows>
<tableRow>
<tableCells>
<tableCell>
<contents>
<date>
<style>
<dataFormat>
<dateFormat/>
</dataFormat>
</style>
</date>
</contents>
<style>
<CSS value="vertical-align:top;text-align:left;width:25%"/>
</style>
</tableCell>
<tableCell>
<contents>
<pageNumber/>
</contents>
<style>
<CSS value="vertical-align:top;text-align:center;width:50%"/>
</style>
</tableCell>
<tableCell>
<contents>
<time>
<style>
<dataFormat>
<timeFormat/>
</dataFormat>
</style>
</time>
</contents>
<style>
<CSS value="vertical-align:top;text-align:right;width:25%"/>
</style>
</tableCell>
</tableCells>
</tableRow>
</tableRows>
<style>
<defaultStyles>
<defaultStyle refStyle="tb"/>
</defaultStyles>
<CSS value="border-collapse:collapse;width:100%"/>
</style>
</table>
</contents>
<style>
<defaultStyles>
<defaultStyle refStyle="pf"/>
</defaultStyles>
<CSS value="padding-top:10px"/>
</style>
</pageFooter>
</page>
</reportPages>
</layout>
</layouts>
<XMLAttributes><XMLAttribute name="RS_CreateExtendedDataItems" value="true" output="no"/><XMLAttribute name="listSeparator" value="," output="no"/><XMLAttribute name="RS_modelModificationTime" value="2014-07-11T23:06:07.065Z" output="no"/></XMLAttributes><queries><query name="Query2"><source><model/></source><selection><dataItemHierarchySet rootMembersOnly="true" name="Retailer (by type)"><dmDimension><DUN>[Sales (analysis)].[Retailer type]</DUN><itemCaption>Retailer type</itemCaption></dmDimension><dmHierarchy><HUN>[Sales (analysis)].[Retailer type].[Retailer (by type)]</HUN><itemCaption>Retailer (by type)</itemCaption></dmHierarchy></dataItemHierarchySet><dataItemHierarchySet rootMembersOnly="true" name="Products"><dmDimension><DUN>[Sales (analysis)].[Products]</DUN><itemCaption>Products</itemCaption></dmDimension><dmHierarchy><HUN>[Sales (analysis)].[Products].[Products]</HUN><itemCaption>Products</itemCaption></dmHierarchy></dataItemHierarchySet><dataItemMeasure name="Revenue"><dmMember><MUN>[Sales (analysis)].[Sales].[Revenue]</MUN><itemCaption>Revenue</itemCaption></dmMember><dmDimension><DUN>[Sales (analysis)].[Sales]</DUN><itemCaption>Sales</itemCaption></dmDimension><XMLAttributes><XMLAttribute name="RS_dataType" value="2" output="no"/></XMLAttributes></dataItemMeasure></selection><detailFilters><detailFilter use="optional"><filterExpression>[Sales (analysis)].[Retailer type].[Retailer (by type)].[Retailer type].[Retailer type code]= ?Parameter1?</filterExpression></detailFilter><detailFilter use="optional"><filterExpression>[Sales (analysis)].[Retailer type].[Retailer (by type)].[Retailer].[Retailer code] in ?Parameter2?</filterExpression></detailFilter><detailFilter use="optional"><filterExpression>[Sales (analysis)].[Products].[Products].[Product details].[Product number] in (?Parameter3?)</filterExpression></detailFilter></detailFilters></query><query name="Query1"><source><model/></source><selection><dataItem name="Retailer type code" aggregate="none"><expression>[Sales (analysis)].[Retailer type].[Retailer (by type)].[Retailer type].[Retailer type code]</expression></dataItem><dataItem name="Retailer type code1" aggregate="none" sort="ascending"><expression>[Sales (analysis)].[Retailer type].[Retailer (by type)].[Retailer type].[Retailer type code]</expression></dataItem></selection></query><query name="Query3"><source><model/></source><selection><dataItem name="Retailer code" aggregate="none"><expression>[Sales (analysis)].[Retailer type].[Retailer (by type)].[Retailer].[Retailer code]</expression></dataItem><dataItem name="Retailer name (multiscript)" aggregate="none" sort="ascending"><expression>[Sales (analysis)].[Retailer type].[Retailer (by type)].[Retailer].[Retailer name (multiscript)]</expression></dataItem><dataItemMemberProperty name="Retailer type code"><dmMemberProperty><MPUN>[Sales (analysis)].[Retailer type].[Retailer (by type)].[Retailer type].[Retailer type code]</MPUN><itemCaption>Retailer type code</itemCaption></dmMemberProperty><dmDimension><DUN>[Sales (analysis)].[Retailer type]</DUN><itemCaption>Retailer type</itemCaption></dmDimension><dmHierarchy><HUN>[Sales (analysis)].[Retailer type].[Retailer (by type)]</HUN><itemCaption>Retailer (by type)</itemCaption></dmHierarchy><dmLevel><LUN>[Sales (analysis)].[Retailer type].[Retailer (by type)].[Retailer type]</LUN><itemCaption>Retailer type</itemCaption></dmLevel></dataItemMemberProperty></selection><detailFilters><detailFilter use="prohibited"><filterExpression>[Retailer type code]=?Parameter1?</filterExpression></detailFilter></detailFilters></query><query name="Query4"><source><model/></source><selection><dataItemLevelSet name="Product details"><dmLevel><LUN>[Sales (analysis)].[Products].[Products].[Product details]</LUN><itemCaption>Product details</itemCaption></dmLevel><dmDimension><DUN>[Sales (analysis)].[Products]</DUN><itemCaption>Products</itemCaption></dmDimension><dmHierarchy><HUN>[Sales (analysis)].[Products].[Products]</HUN><itemCaption>Products</itemCaption></dmHierarchy></dataItemLevelSet><dataItemMemberProperty name="Product number"><dmMemberProperty><MPUN>[Sales (analysis)].[Products].[Products].[Product details].[Product number]</MPUN><itemCaption>Product number</itemCaption></dmMemberProperty><dmDimension><DUN>[Sales (analysis)].[Products]</DUN><itemCaption>Products</itemCaption></dmDimension><dmHierarchy><HUN>[Sales (analysis)].[Products].[Products]</HUN><itemCaption>Products</itemCaption></dmHierarchy><dmLevel><LUN>[Sales (analysis)].[Products].[Products].[Product details]</LUN><itemCaption>Product details</itemCaption></dmLevel></dataItemMemberProperty></selection></query></queries><reportName>Auto submit</reportName><reportVariables><reportVariable type="boolean" name="finish_click">
<reportExpression>ParamValue('p_sns_click')='1'</reportExpression>
<variableValues>
<variableValue value="1"/>
</variableValues>
</reportVariable></reportVariables><drillBehavior drillUpDown="true" modelBasedDrillThru="true"/></report>

Cognos Tree Prompt with Javascript on 10.2.1 (select all child on expand, select all child on parent selection and deselect all child on parent deselect)

Cognos Tree Prompt customization with Javascript

Requirement:
1. When you expand a node, all the child nodes beneath it are checked and current node get deselected.

2. When you deselect the parent node, all the child nodes beneath it are deselected.

3. When Select the parent node, all the child nodes beneath it are selected.
4. When any node selected or deselected its parent would be deselected.

Solution:

I have  copied some of code from below links to write my code.

http://www-01.ibm.com/support/docview.wss?uid=swg21398130

http://cognospaul.com/2011/12/29/accessing-tree-prompts-with-javascript-on-cognos-10-1-1/

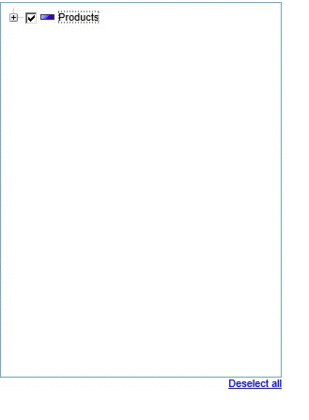

Step 1: Create a tree prompt and give it the name “Time”.
Step 2: Set Multiselect property of tree prompt to yes.

Step 3: Drag an HTML item to the left of the tree prompt and add below code.

<div id='myTree'>

Step 4:  Drag HTML item to the right and add below code.

</div>

Step 5: Now drag one more html at right side finish button with below code

<script>

var idCounter=0;

 var nodeObj = new Array();

 var nodeId = new Array();

var nodeState = new Array();

document.getElementById('myTree').onmouseup=function(){runTree('Time')}; // replace div id and tree prompt name here

function runTree(id)

{

 t=setTimeout('checkTree("'+id+'")',200);

}

function checkTree(id)

{

  var tree =  window.treeTime; // replace tree prompt name here

  var startNode=tree.getRootNode();

  idCounter=0;

nodeObj[idCounter]=startNode.getChildren()[0];

 getchange();

 getNode(startNode);

}

function getNode(node)

{   // storing node and selection status

               if (node.hasChildren())

                {

var children = node.getChildren();

for (var iChildCounter = 0; iChildCounter < children.length; iChildCounter++)

{

nodeId[idCounter]=children[iChildCounter].getName();

nodeState[idCounter]=children[iChildCounter].getState();

nodeObj[idCounter]=children[iChildCounter];

children[iChildCounter].setIndicator(''); // Setting indicator null to caputure user selection, a blank indicator with change state means user changes

idCounter++;

if(children[iChildCounter].hasChildren())

getNode(children[iChildCounter]); //recursive call to retrive next level

}

               }

}

function getchange()

{ //Caputure user selection

for(x=0;x<nodeObj.length;x++)

{

if(nodeObj[x].getLoading())  //check if node is loading its child.

{

nodeObj[x].setIndicator('100');   //set different indicator to identify new loading node.

t=setTimeout('getchange()',100);   //keep recalling the fuction till loading completed

break;

}

if(nodeObj[x].getIndicator()=='100' && nodeObj[x].hasChildren()) // if newly loaded node and having children(not the last node)

{

selectChild(nodeObj[x]);

break; //exit for loop if find selected or deselected node

}

else if (nodeObj[x].getState()!=nodeState[x] &&  nodeObj[x].getIndicator()!='101')

{

if (nodeObj[x].isSelected() && !nodeObj[x].hasSelectedChildren())

selectChild(nodeObj[x]);

else if (!nodeObj[x].isSelected() && !(nodeState[x]==0 && nodeObj[x].getState()==1))

deSelectChild(nodeObj[x]);

break; //exit for loop if find selected or deselected node

}

}

}

function selectChild(currentNode)

{ // select all new retrived child

for(i=0;i<=currentNode.getChildren().length-1;i++)

{

      var node = currentNode.getChildren()[i];

      node.setSelected(true);

      node.updateNodeSelection();

      node.updateParent();

  node.setIndicator('101'); // set indicator to '101' to idenfie javascript selection and deselection (blank for user selection)

        window.treeTime.setLastSelectedNode(node); // replace tree prompt name here



}

// deselect parent node of new retrived child

if(currentNode.getIndicator()=='100')

{

currentNode.setSelected(false);

currentNode.updateNodeSelection();

currentNode.updateParent();

currentNode.setIndicator('101');

}

if(currentNode.getParent().getChildren().length>1)

{

currentNode.getParent().setSelected(false);

currentNode.getParent().updateNodeSelection();

currentNode.getParent().updateParent();

currentNode.getParent().setIndicator('101')

}

idCounter=0;

getNode(window.treeTime.getRootNode()); // replace tree prompt name here

}

function deSelectChild(currentNode)

{ // deselect child node if parent deselected

for(i=0;i<=currentNode.getChildren().length-1;i++)

{

      var node = currentNode.getChildren()[i];

node.setSelected(false);

      node.updateNodeSelection();

      node.updateParent();

  node.setIndicator('101')

        window.treeTime.setLastSelectedNode(node); // replace tree prompt name here

}

if(currentNode.getParent().getChildren().length>1)

{

currentNode.getParent().setSelected(false);

currentNode.getParent().updateNodeSelection();

currentNode.getParent().updateParent();

currentNode.getParent().setIndicator('101')

}

}

</script>
